| Référence | Matériaux utilisés | Seuil de filtration | Taille | Surface du fluide | Cote de rendement du filtre | Largeur | Température de service maximale | Pression de service minimale | Secteur | Résistance initiale | Température de service maximale (F) | FluideMédia | Hauteur (po) | Poids (lb) | Type de produit | Type de montage | Débit (cfm) | Débit | Nominal Size (inch) | Profondeur (po) | Spécifications respectées | Largeur (po) | Pression de service maximale | Hauteur | Profondeur | Technologie | Poids | Type de produit | Marque | Media Area (sq. ft.) | Pour le type de fluide |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1118606 | 24 Gauge Aluminized Steel Cell Sides | =75% 0.3 to 1.0 m μm | 24x24x4 inch (nom) | 103 ft2 | MERV 14 | 59.3725 cm | 399 °C | 0 inch | Commercial and Industrial | 0.7 | 750 | Microglass Paper | 23.375 | 9.83 | Extended Surface Rigid Cell Filters | HVAC Frame Systems | 2000 | 2000 ft3/min | 24x24x4 | 3.75 | Classified UL Class 1 | 23.375 | 1.5 inch | 59.3725 cm | 3.75 inch | Filtration | 4.45881 kg | Extended Surface Rigid Cell Filters | Airguard | 103 | Air |
1118609 | 24 Gauge Aluminized Steel Cell Sides | =85% 1.0 to 3.0 m μm | 16X20X4 inch (nom) | 57 ft2 | MERV 13 | 15.375 inch | 750 °F | 0 inch | Commercial and Industrial | 0.65 | 750 | Microglass Paper | 19.375 | 6 | Extended Surface Rigid Cell Filters | HVAC Frame Systems | 1100 | 1100 ft3/min | 16X20X4 | 3.75 | Classified UL Class 1 | 15.375 | 1.5 inch | 19.375 inch | 3.75 inch | Filtration | 2.72155 kg | Extended Surface Rigid Cell Filters | Airguard | 57 | Air |
1118610 | 24 Gauge Aluminized Steel Cell Sides | =85% 1.0 to 3.0 m μm | 16x25x4 inch (nom) | 71 ft2 | MERV 13 | 39.0525 cm | 399 °C | 0 inch | Commercial and Industrial | 0.65 | 750 | Microglass Paper | 24.375 | 7.17 | Extended Surface Rigid Cell Filters | HVAC Frame Systems | 1400 | 1400 ft3/min | 16x25x4 | 3.75 | Classified UL Class 1 | 15.375 | 1.5 inch | 61.9125 cm | 3.75 inch | Filtration | 7.17 lb | Extended Surface Rigid Cell Filters | Airguard | 71 | Air |
Description

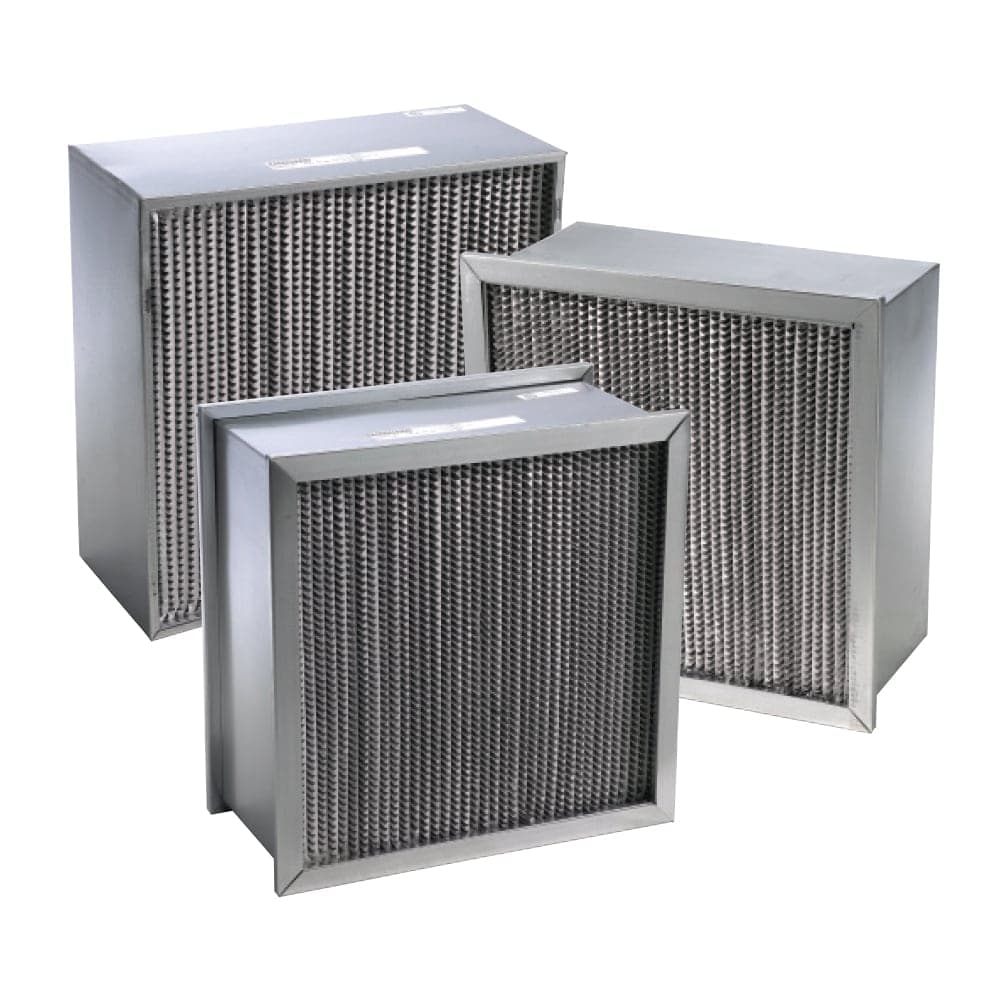

The Variflow® Compact Series offers many of the performance advantages of the Variflow line in a thinner and lighter filter. They can be used in a wide variety of applications and installed in existing systems with little or no modification. Variflow Compact Series filters are aluminized steel rigid-cell, extended-surface filters that can be used in high-temperature applications up to 750°F (399°C).
Features/Benefits:
• High-efficiency microglass paper media
• Available in three efficiencies: Minimum Efficiency Reporting Value (MERV) 14, MERV 13, and MERV 11
• Low profile (2- and 4-in. deep)
• All-metal design with aluminized steel cell sides, corrugated aluminum separators, and expanded metal faceguards
• Moisture-resistant
• UL Standard 900 for flammability
• Maximum operating temperature of 750°F (399°C)
• Optional high-temperature gaskets available
Applications:
Commercial and industrial air filtration, high-temperature applications
