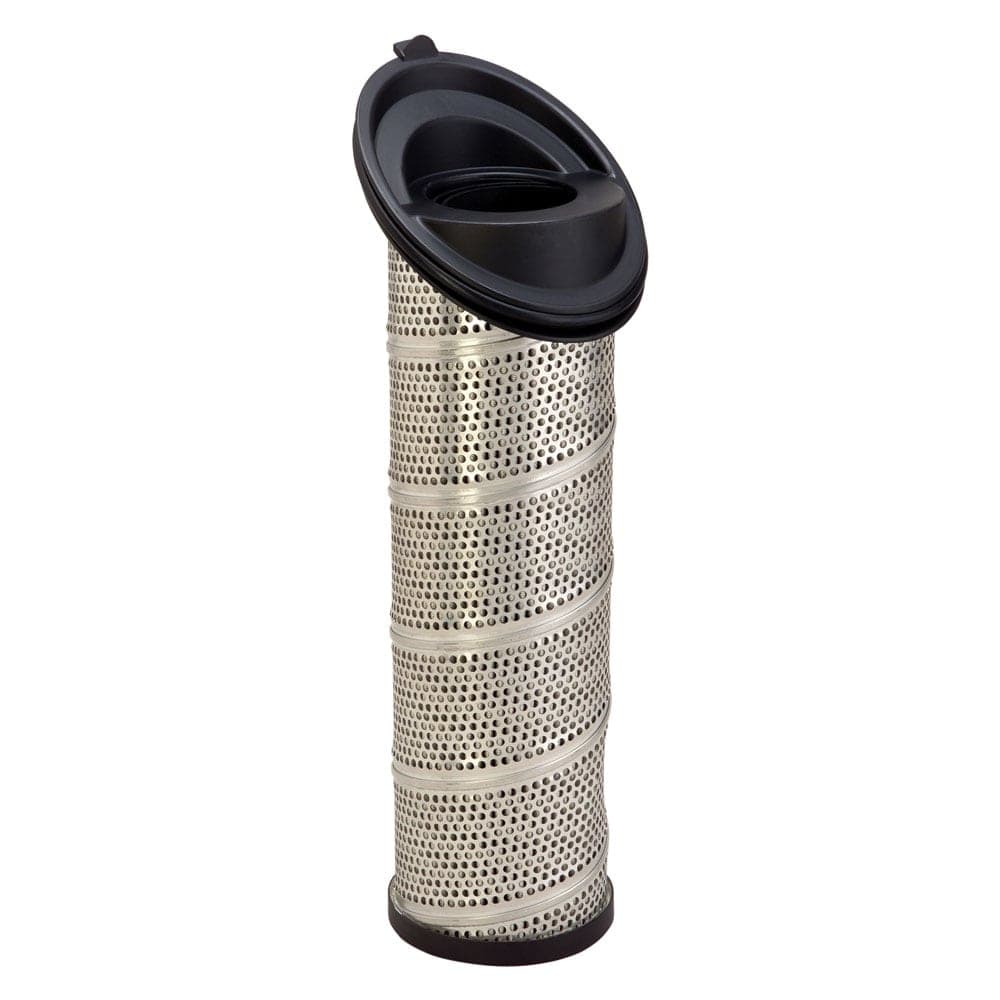

Replacement Elements - Low Pressure Filter Moduflow™ Plus Series
The patented Parker Moduflow™ Plus Series Low Pressure In-Line Suction/Return/Duplex Filter element features longer element life, increased dirt-holding capacity and requires fewer element changes, reducing system maintenance costs.
48 références disponibles
| Référence | Seuil de filtration | Série de carter de filtre | FluideMédia | Matériau du joint | Longueur |
|---|---|---|---|---|---|
924448 | 40 µm | CF2 | Synthetic | Nitrile | Single |
924450 | 10 µm | CF2 | Cellulose | Nitrile | Single |
924451 | 20 µm | CF2 | Cellulose | Nitrile | Single |
924452Q | 05 µm | CF2 | Microglass | Nitrile | Single |
924453Q | 10 µm | CF2 | Microglass | Nitrile | Single |
924455 | 40 µm | CF2 | Wire Mesh | Nitrile | Single |
924456 | 74 µm | CF2 | Wire Mesh | Nitrile | Single |
924790 | 40 µm | CF2 | Synthetic | Nitrile | Double |
924792 | 10 µm | CF2 | Cellulose | Nitrile | Double |
924793 | 20 µm | CF2 | Cellulose | Nitrile | Double |
924797 | 40 µm | CF2 | Wire Mesh | Nitrile | Double |
924798 | 74 µm | CF2 | Wire Mesh | Nitrile | Double |
925037 | 10 µm | CF2 | Cellulose | Fluorocarbon | Single |
925038 | 20 µm | CF2 | Cellulose | Fluorocarbon | Double |
925039Q | 05 µm | CF2 | Microglass | Fluorocarbon | Single |
925040Q | 10 µm | CF2 | Microglass | Fluorocarbon | Single |
925052 | 40 µm | CF2 | Wire Mesh | Fluorocarbon | Double |
927584 | Water Removal | CF2 | ParGel | Nitrile | Single |
932686Q | 02 µm | RF2, IL2, DIL2 | Microglass | Nitrile | Single |
932687Q | 05 µm | RF2, IL2, DIL2 | Microglass | Nitrile | Single |
932688Q | 10 µm | RF2, IL2, DIL2 | Microglass | Nitrile | Single |
932689Q | 02 µm | RF2, IL2, DIL2 | Microglass | Fluorocarbon | Single |
932690Q | 05 µm | RF2, IL2, DIL2 | Microglass | Fluorocarbon | Single |
932691Q | 10 µm | RF2, IL2, DIL2 | Microglass | Fluorocarbon | Single |
932692Q | 02 µm | RF2, IL2, DIL2 | Microglass | Nitrile | Double |
Description
The patented Parker Moduflow™ Plus Series Low Pressure (In-Line Suction/Return/Duplex) Filter element features a one piece element design with customizable bypass settings. The patented, single-piece design means no loose parts and easier maintenance.
Featuring Microglass III media , the Moduflow™ Plus element is constructed with more pleats to provide 60% more surface area within the same filter housing than many comparable filters - meaning more dirt-holding capacity than many competitors, and less need for replacement.
Using the patented Parker GMF Series replacement elements guarantees Parker’s quality of filtration. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in multiple mounting styles, Single and Double lengths, and several micron ratings (2, 5, 10, and 20), these patented replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the "How to Order" section of the literature or contact a Parker Representative.
