| Référence | Demi-accouplement | Type de produit | Type de vanne | Type de raccordement | Taille du corps (po) | Taille du filetage du raccordement (po) |
|---|---|---|---|---|---|---|
4010-2P | Male Nipple | Manual sleeve | Poppet | Female NPTF | 1/4 | 1/4 - 18 |
4010-3P | Male Nipple | Manual sleeve | Poppet | Female NPTF | 3/8" | 3/8 - 18 |
4010-6P | Male Nipple | Manual sleeve | Poppet | Female NPTF | 1 | 1 - 11 1/2 |
4050-15 | Female Coupler | Manual sleeve | Ball | Female ORB | 1/2 | 3/4 - 16 |
4050-15P | Female Coupler | Manual sleeve | Poppet | Female ORB | 1/2 | 3/4 - 16 |
4050-16 | Female Coupler | Manual sleeve | Ball | Female ORB | 1/2 | 7/8 - 14 |
4050-16P | Female Coupler | Manual sleeve | Poppet | Female ORB | 1/2 | 7/8 - 14 |
4050-29BSPP | Female Coupler | Manual sleeve | Ball | Female BSPP | 1/2 | 1/2 - 14 |
4050-2P | Female Coupler | Manual sleeve | Poppet | Female NPTF | 1/4 | 1/4 - 18 |
4050-3P | Female Coupler | Manual sleeve | Poppet | Female NPTF | 3/8" | 3/8 - 18 |
4050-4 | Female Coupler | Manual sleeve | Ball | Female NPTF | 1/2 | 1/2 - 14 |
4050-4P | Female Coupler | Manual sleeve | Poppet | Female NPTF | 1/2 | 1/2 - 14 |
4050-5 | Female Coupler | Manual sleeve | Ball | Female NPTF | 1/2 | 3/4 - 14 |
4050-5P | Female Coupler | Manual sleeve | Poppet | Female NPTF | 1/2 | 3/4 - 14 |
4050-6P | Female Coupler | Manual sleeve | Poppet | Female NPTF | 1 | 1 - 11 1/2 |
4050-T6 | Female Coupler | Manual sleeve | Poppet | Female ORB | 1/4 | 9/16 - 18 |
4050P-T6 | Female Coupler | Push pull sleeve | Poppet | Female ORB | 1/4 | 9/16 - 18 |
4110-5 | Male Nipple | Manual sleeve | Ball | Female NPTF | 3/4 | 3/4 - 14 |
4150-5 | Female Coupler | Manual sleeve | Ball | Female NPTF | 3/4 | 3/4 - 14 |
Description

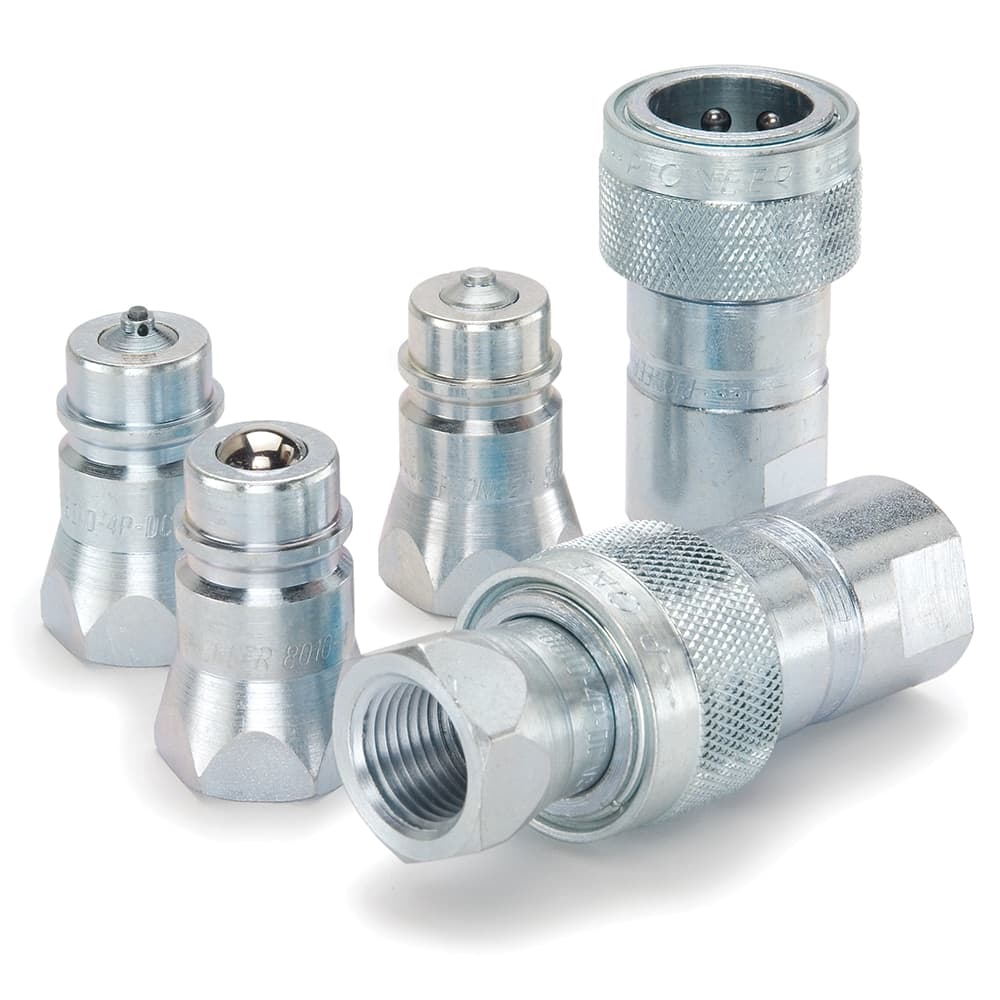

4000 Series Couplers (hydraulic) 3000 psi, connect with 4000 Series Nipples and 1/2"" 8010 Series Nipples (ISO 5675, Pioneer male tips).
Parker's 4000 Series are double shut-off quick couplings with poppet or ball valve options. Couplers have a manual sleeve. Push-pull breakaway sleeve is only available on 1/4" body size with 9/16 - 18 ORB thread, part number 4050P-T6.
4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
• Snow removal
• Industrial
Features/Benefits:
• Proven design for rugged applications
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2" size globally connects with Pioneer universal male tips (nipples) complying to ISO 5675
Applications:
• Tractors and agricultural equipment
• Hydraulic loaders
• Add-on hydraulic circuits
• Hydraulic tools
• Snow plow attachments
