| Référence | Couleur | Taille de commande | Quantité paquet standard (pi) | Type de produit |
|---|---|---|---|---|
E-108-0100 | Naturel | .500 | 100 | Fractional, Instr. Grade |
E-12X1.5-0100 | Naturel | 7MM | 100 | Metric, Instr. Grade |
E-43-0100 | Naturel | .170 | 100 ft box | Fractional, Instr. Grade |
E-43-0500 | Naturel | .170 | 500 | Fractional, Instr. Grade |
E-43-B-0100 | Bleu | .170 | 100 ft box | Fractional, Instr. Grade |
E-43-B-0500 | Bleu | .170 | 500 | Fractional, Instr. Grade |
E-43-G-0100 | VERT | .170 | 100 | Fractional, Instr. Grade |
E-43-G-0500 | VERT | .170 | 500 | Fractional, Instr. Grade |
E-43-GRA-0100 | Gray | .170 | 100 | Fractional, Instr. Grade |
E-43-GRA-0500 | Gray | .170 | 500 | Fractional, Instr. Grade |
E-43-O-0100 | Orange | .170 | 100 | Fractional, Instr. Grade |
E-43-O-0500 | Orange | .170 | 500 | Fractional, Instr. Grade |
E-43-P-0100 | Purple | .170 | 100 | Fractional, Instr. Grade |
E-43-P-0500 | Purple | .170 | 500 | Fractional, Instr. Grade |
E-43-R-0100 | rouge | .170 | 100 | Fractional, Instr. Grade |
E-43-R-0500 | rouge | .170 | 500 | Fractional, Instr. Grade |
E-43-Y-0100 | Jaune | .170 | 100 | Fractional, Instr. Grade |
E-43-Y-0500 | Jaune | .170 | 500 | Fractional, Instr. Grade |
E-53-0100 | Naturel | .187 | 100 | Fractional, Instr. Grade |
E-53-0500 | Naturel | .187 | 500 | Fractional, Instr. Grade |
E-53-B-0500 | Bleu | .187 | 500 | Fractional, Instr. Grade |
E-64-0100 | Naturel | .250 | 100 ft box | Fractional, Instr. Grade |
E-64-0500 | Naturel | .250 | 500 | Fractional, Instr. Grade |
E-64-B-0100 | Bleu | .250 | 100 ft box | Fractional, Instr. Grade |
E-64-B-0500 | Bleu | .250 | 500 | Fractional, Instr. Grade |
Description

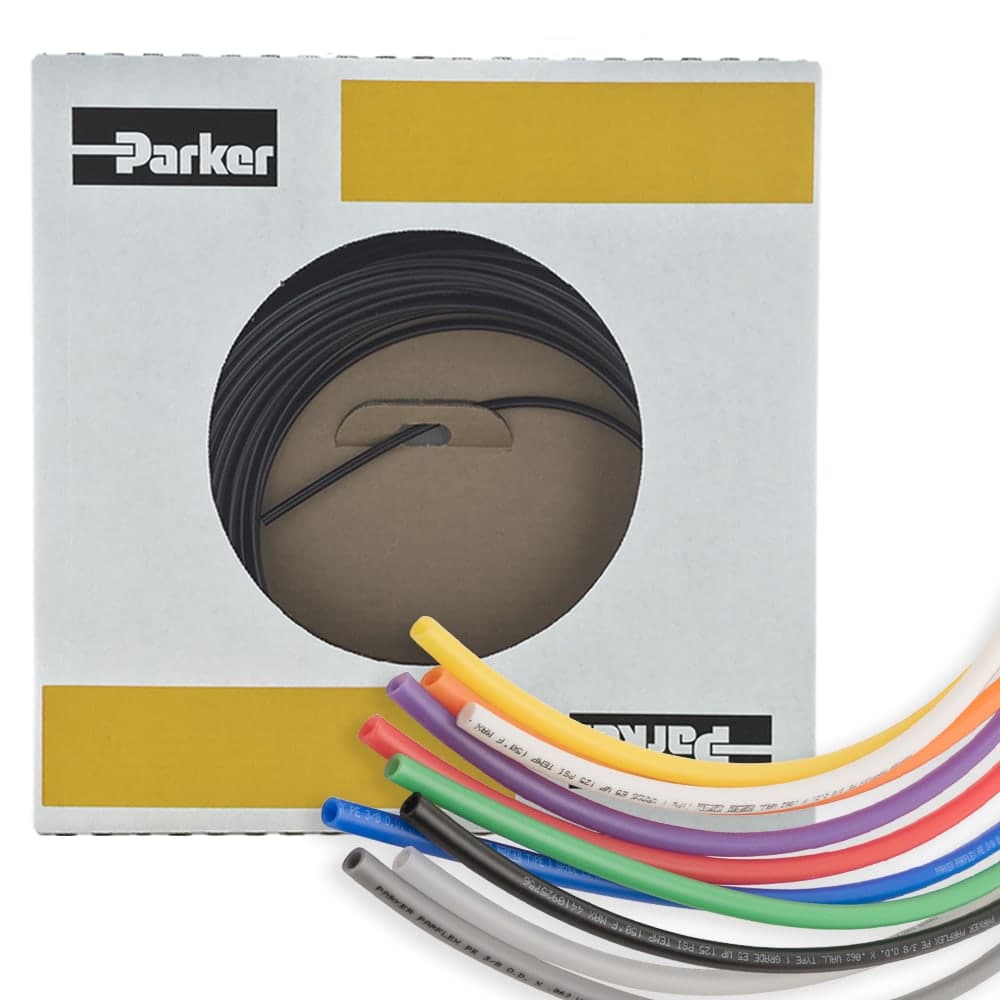

PE tubing is produced from a high molecular weight resin to provide increased dimensional stability, uniformity and long-term strength. Parker PE tubing meets the FDA and NSF-51 requirements for food contact applications and NSF-61 for potable water.
The tubing may be used in general-purpose instrument applications as well as all food handling applications except holding food during cooking. The black tubing, EB series, contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high, ultraviolet light sources.
Standard black is not approved for food handling applications, but NSF-listed and FDA-compliant black can be ordered on special request. A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur.
Markets
• Water Market
• Food & Beverage
• Fluid Handling
• Industrial Pneumatics
• Chemical transfer
Features
• Made from 100% virgin resin material for long term strength
• ASTM D-1693 (10% IGEPAL) For excellent stress crack resistance maximizes the service life
• UV stabilized to reduce fading, cracking and loss of strength from sunlight
• Meets FDA, NSF-51 requirements for food contact applications and NSF-61 for potable water
Applications:
• Potable water
• Beverage dispensers
• Chemical transfer
• Low pressure pneumatics
Certifications/Compliance:
• FDA compliant for food contact
• ASTM D-1693 (10% IGEPAL) for stress crack resistance
• ASTM D-1248, Type I, Class A, Category 4, Grade E5
• NSF – 51
• NSF – 61
Notes:
• Qualified with fittings from Parker Fluid System Connectors Division (See PFD Catalog CAT. 4660 or FSC Catalog CAT3501E USA for specific fittings)
• Black (EB) tubing contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high ultraviolet light source
• A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure
• Wall thickness is for reference only
