| Référence | Demi-accouplement | Taille du corps | Type de raccordement | Taille du filetage du raccordement (po) |
|---|---|---|---|---|

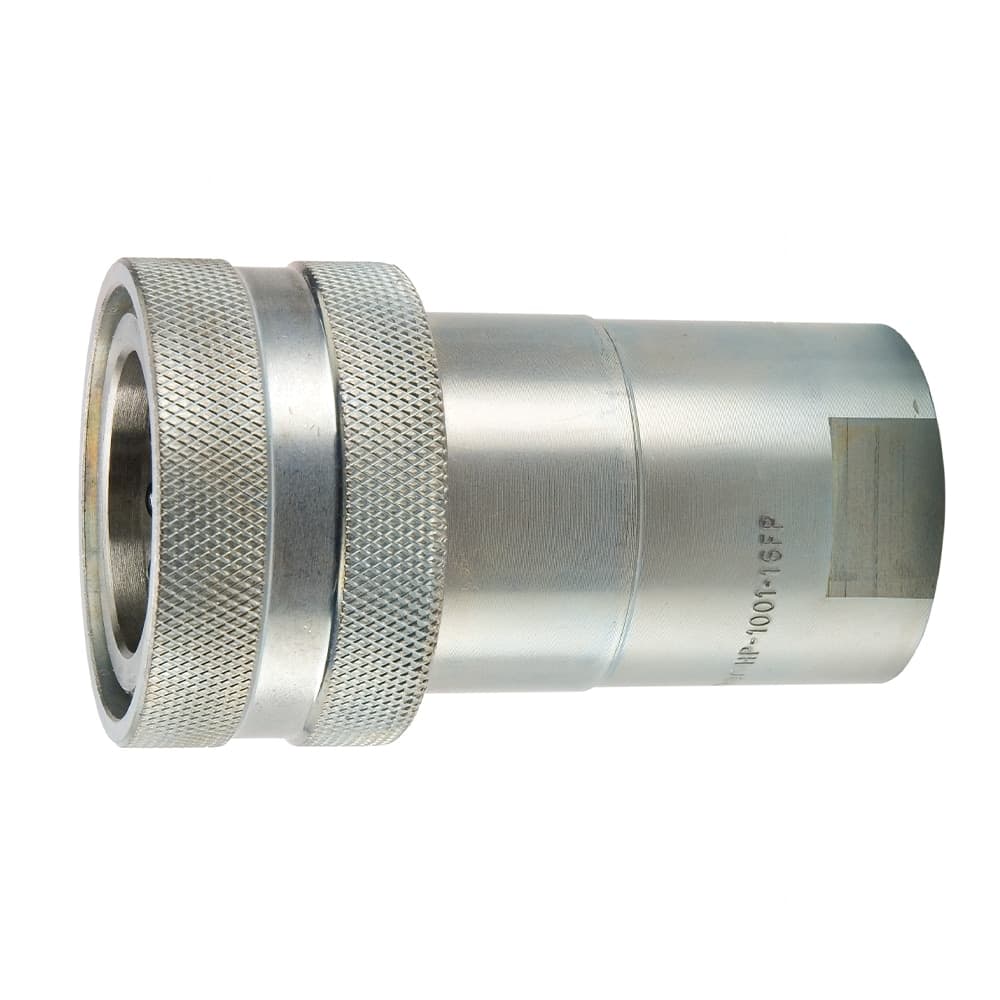

HP-1001-16FP | Female Coupler | 1 | Female NPSF | 1 - 11 1/2 |
HP-1002-16FP | Male Nipple | 1 | Female NPSF | 1 - 11 1/2 |
Description
HP Series Couplers (hydraulic) 5000 psi connect with HP Series Nipples.
Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.
Technical Characteristics:
• Sizes: 1” and 1-1/2””
• Material: Steel
• Port Ends: Female NPSF, Female ORB, Female NPTF
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Industrial
• Construction
• Mobile Equipment
Features/Benefits:
• Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
• High flow with minimal pressure drop
Applications:
• Industrial hydraulic lines
• Construction mobile equipment
