Composite Push-to-Connect Fittings - PLP Composite

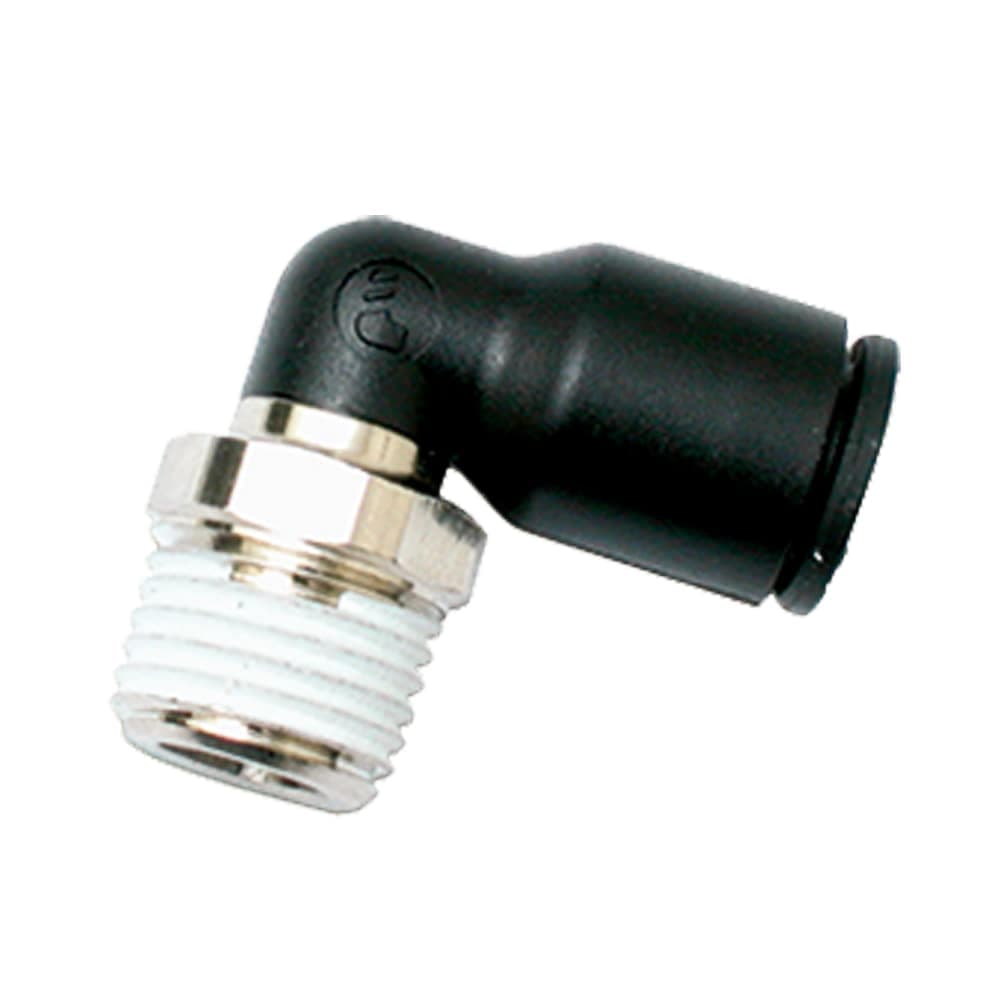

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.
642 références disponibles
| Référence | Forme | Type de raccordement 2 | Diamètre extérieur du tube du raccordement 1 | Configuration | Taille du raccordement 2 | Taille du raccordement 1 | Type de raccordement 1 | Style de produit | Matériau du corps | Taille du filetage du raccordement 1 | Diamètre extérieur du tube du raccordement 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
24PLP-10M-6M | N/A | Push-to-Connect | 10 mm (O.D.) | Tube to Tube | 6 mm | 10 mm | Push-to-Connect | Manifold | Glass-Reinforced Nylon | N/A | 6 mm (O.D.) |
24PLP-10M-8M | N/A | Push-to-Connect | 10 mm (O.D.) | Tube to Tube | 8 mm | 10 mm | Push-to-Connect | Manifold | Glass-Reinforced Nylon | N/A | 8 mm (O.D.) |
24PLP-6M-4M | N/A | Push-to-Connect | 6 mm (O.D.) | Tube to Tube | 4 mm | 6 mm | Push-to-Connect | Manifold | Glass-Reinforced Nylon | N/A | 4 mm (O.D.) |
24PLP-8M-4M | N/A | Push-to-Connect | 5/16" / 8 mm (O.D.) | Tube to Tube | 4 mm | 8 mm | Push-to-Connect | Manifold | Glass-Reinforced Nylon | N/A | 5/32" / 4 mm (O.D.) |
24PLP-8M-6M | N/A | Push-to-Connect | 8 mm (O.D.) | Tube to Tube | 6 mm | 8 mm | Push-to-Connect | Manifold | Glass-Reinforced Nylon | N/A | 6 mm (O.D.) |
3129 53 11Obsolète | Elbow 90° - Male Stud Extented Adjustable | N/A | N/A | N/A | N/A | N/A | NPT | n/a | n/a | 1/8" NPT | 1/8" (O.D.) |
3129 53 14Obsolète | Elbow 90° - Male Stud Extented Adjustable | N/A | N/A | N/A | N/A | N/A | NPT | n/a | n/a | 1/4" NPT | 1/8" (O.D.) |
322PLPSP-4M-5M | Barbed Connector | Barb | N/A | N/A | 5 mm | 4 mm | Plug-in Stem | Tube to Barb | Glass-Reinforced Nylon | N/A | N/A |
322PLPSP-8M-8M | N/A | Barb | 8 mm (O.D.) | Tube to Barb | 8 mm | 8 mm | Plug-in Stem | Barbed Connector | Glass-Reinforced Nylon | N/A | 8 mm (O.D.) |
32PLP-10M | Union | Push-to-Connect | 10 mm (O.D.) | Tube to Tube | 10 mm | 10 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 10 mm (O.D.) |
32PLP-10M-6M | Unequal Union | Push-to-Connect | 10 mm (O.D.) | Tube to Tube | 6 mm | 10 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 6 mm (O.D.) |
32PLP-10M-8M | Unequal Union | Push-to-Connect | 10 mm (O.D.) | Tube to Tube | 8 mm | 10 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 8 mm (O.D.) |
32PLP-12M | Union | Push-to-Connect | 12 mm (O.D.) | Tube to Tube | 12 mm | 12 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 12 mm (O.D.) |
32PLP-12M-10M | Unequal Union | Push-to-Connect | 12 mm (O.D.) | Tube to Tube | 10 mm | 12 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 10 mm (O.D.) |
32PLP-12M-14M | Unequal Union | Push-to-Connect | 12 mm (O.D.) | Tube to Tube | 14 mm | 12 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 14 mm (O.D.) |
32PLP-12M-8M | Unequal Union | Push-to-Connect | 12 mm (O.D.) | Tube to Tube | 8 mm | 12 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 8 mm (O.D.) |
32PLP-14M | Union | Push-to-Connect | 14 mm (O.D.) | Tube to Tube | 14 mm | 14 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 14 mm (O.D.) |
32PLP-2 | Union | Push-to-Connect | 1/8" (O.D.) | Tube to Tube | 1/8" | 1/8" | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 1/8" (O.D.) |
32PLP-3 | Union | Push-to-Connect | 3/16" (O.D.) | Tube to Tube | 3/16" | 3/16" | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 3/16" (O.D.) |
32PLP-3M | Union | Push-to-Connect | 3 mm (O.D.) | Tube to Tube | 3 mm | 3 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 3 mm (O.D.) |
32PLP-3M-4M | Unequal Union | Push-to-Connect | 3 mm (O.D.) | Tube to Tube | 4 mm | 3 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 4 mm (O.D.) |
32PLP-4 | Union | Push-to-Connect | 1/4" (O.D.) | Tube to Tube | 1/4" | 1/4" | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 1/4" (O.D.) |
32PLP-4M | Union | Push-to-Connect | 5/32" / 4 mm (O.D.) | Tube to Tube | 4 mm | 4 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 5/32" / 4 mm (O.D.) |
32PLP-6 | Union | Push-to-Connect | 3/8" (O.D.) | Tube to Tube | 3/8" | 3/8" | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 3/8" (O.D.) |
32PLP-6M | Union | Push-to-Connect | 6 mm (O.D.) | Tube to Tube | 6 mm | 6 mm | Push-to-Connect | Tube to Tube | Glass-Reinforced Nylon | N/A | 6 mm (O.D.) |
Description
Parker’s Prestolok composite pneumatic push-to-connect fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. Simply push the tubing into the fitting until it bottoms. These quick connect pneumatic fittings are also easy to disassemble: just press the release button, hold against the body and pull tubing from the fitting. A D-seal in the Prestolok PLP composite air fitting provides a positive seal on the O.D. of the tubing in both static and dynamic positions. The D-seal deforms during insertion of the tubing lowering the insertion force without compromising the sealing feature. A thread sealant is applied to all male threads eliminating the possibility of system contamination from PTFE tape. All components in Prestolok PLP composite are silicone free. All Prestolok PLP composite push in fittings are 100% leak tested and date coded to guarantee quality and traceability.
For use with the following Parker Parflex Division tubing.
• Polyethylene, Polyurethane 90 Durometer Shore A. Eliminate Fluoropolymer
• Nylon
• Semi-rigid nylon
• Polyurethane 95 Durometer Shore A
• Fluoropolymer
Markets:
• Pneumatic
• Industrial
• Robotic
• Automation
• Printing
• Packaging
• Textile
• Semi-conductor
Features and Benefits:
• Glass reinforced nylon 6.6 body
• Stainless steel grab ring
• Conforms to ISO 14743
• Nitrile D-seal provides a positive seal on the O.D. of the tube, in both static and dynamic positions
• 100% leak tested in production
• Date coding to guarantee quality and traceability
• Corrosion and chemical resistance
• Full flow
• Pre-applied thread sealant
• Inch and metric sizes, 1/8" - 1/2", 4mm - 16mm
• Lightweight
• NPT, UNF, BSPT, BSPP & Metric threads
• Use with Semi-rigid nylon, Polyurethane 95 durometer Shore A, Nylon, Polyethylene, Polypropylene, Polyurethane 90 durometer Shore A tubing
• Silicone free
• Orientable for ease of assembly
Applications:
• Air lines
• Inert gases
• Cutting fluids
• Vacuum
Custom configurations and sizes are available upon request. Contact us for additional information.
Value:
Parker Hannifin's Fluid System Connectors Division's patented D-Seal technology provides superior sealing protection to enhance the tube connection, prolonging the fitting, resulting in increased OEM revenues by extending equipment life.
