| Référence | Demi-accouplement | Taille du corps | Type de manchon | Taille du filetage du raccordement (po) |
|---|---|---|---|---|
6105-08 | Male Nipple | 3/4 Inch | na | 1/2 - 14 |
6105-12 | Male Nipple | 3/4 Inch | na | 3/4 - 14 |
6105-16 | Male Nipple | 1 Inch | na | 1 - 11 1/2 |
6105-20 | Male Nipple | 1 1/4 Inch | na | 1 1/4 - 11 1/2 |
6125-08 | Female Coupler | 3/4 Inch | Wing nut | 1/2 - 14 |
6125-12 | Female Coupler | 3/4 Inch | Wing nut | 3/4 - 14 |
6125-16 | Female Coupler | 1 Inch | Wing nut | 1 - 11 1/2 |
6125-20 | Female Coupler | 1 1/4 Inch | Wing nut | 1 1/4 - 11 1/2 |
6125-24 | Female Coupler | 1 1/2 Inch | Wing nut | 1 1/2 - 11 1/2 |
6135-08 | Female Coupler | 3/4 Inch | Hex nut | 1/2 - 14 |
6135-12 | Female Coupler | 3/4 Inch | Hex nut | 3/4 - 14 |
6135-16 | Female Coupler | 1 Inch | Hex nut | 1 - 11 1/2 |
6135-20 | Female Coupler | 1 1/4 Inch | Hex nut | 1 1/4 - 11 1/2 |
6135-24 | Female Coupler | 1 1/2 Inch | Hex nut | 1 1/2 - 11 1/2 |
Description

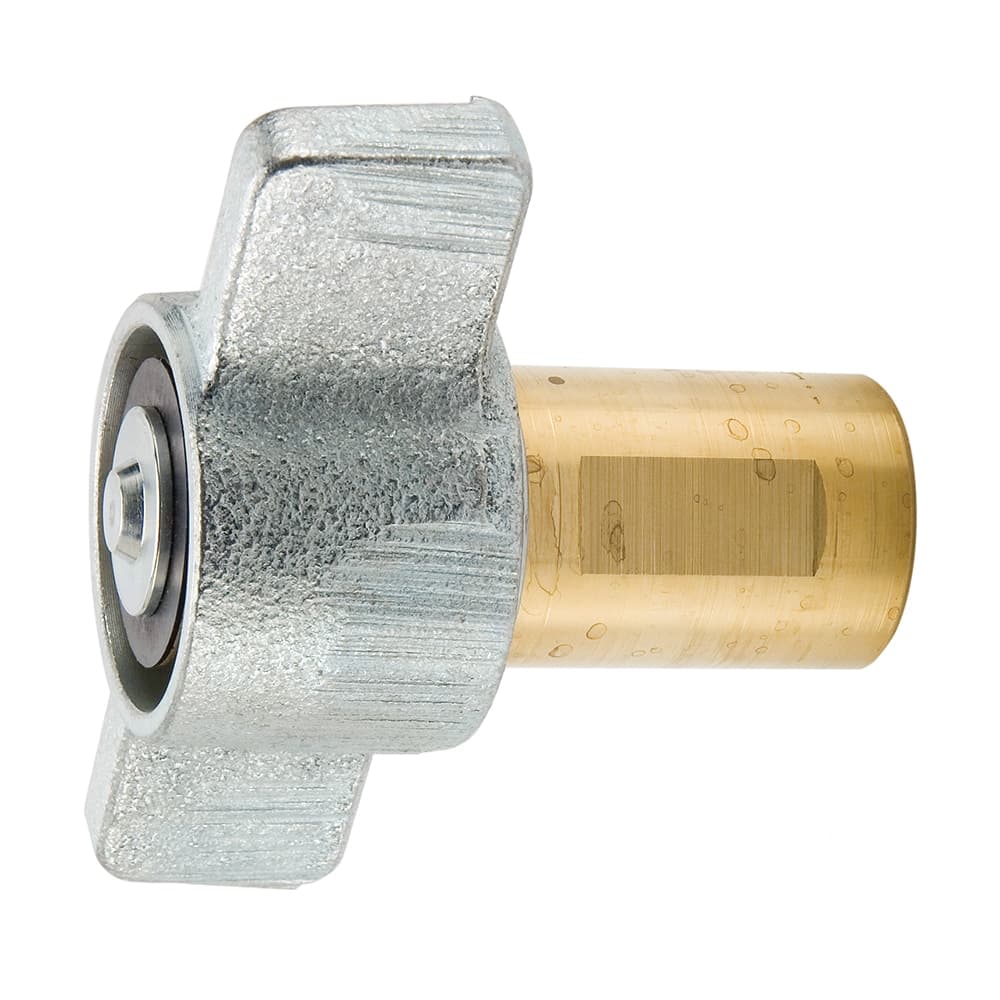

6100 Series Couplers (hydraulic) 3000 psi connect with 6100 Series Nipples.
Parker's 6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body visually shows when the connection is complete and valves are fully open. Couplers and nipples are available in a range of sizes. Couplings sets consisting of a coupler, nipple, and mounting flanges are also available.
Technical Characteristics:
• Sizes: 3/4” thru 1-1/2"
• Materials: Brass with steel sleeve
• Port Ends: Female NPTF
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Oil and gas
• Construction
• Testing
Features/Benefits:
• Couplers are available with steel hex or heavy duty wing nut sleeve
• Low spill flush valves
• Bonded valve seal is durable under full pressure connect and disconnect
• Connection indicator groove on the nipple body visually indicates when the connection is complete
• Optional flange for secure bulkhead or panel mounting
Applications:
• Submersible pumps
• Oil field equipment
• Dump trailers
• Engine test stands
• Bulk liquid transfer
• CO2 transfer (special part numbers apply, contact us)
