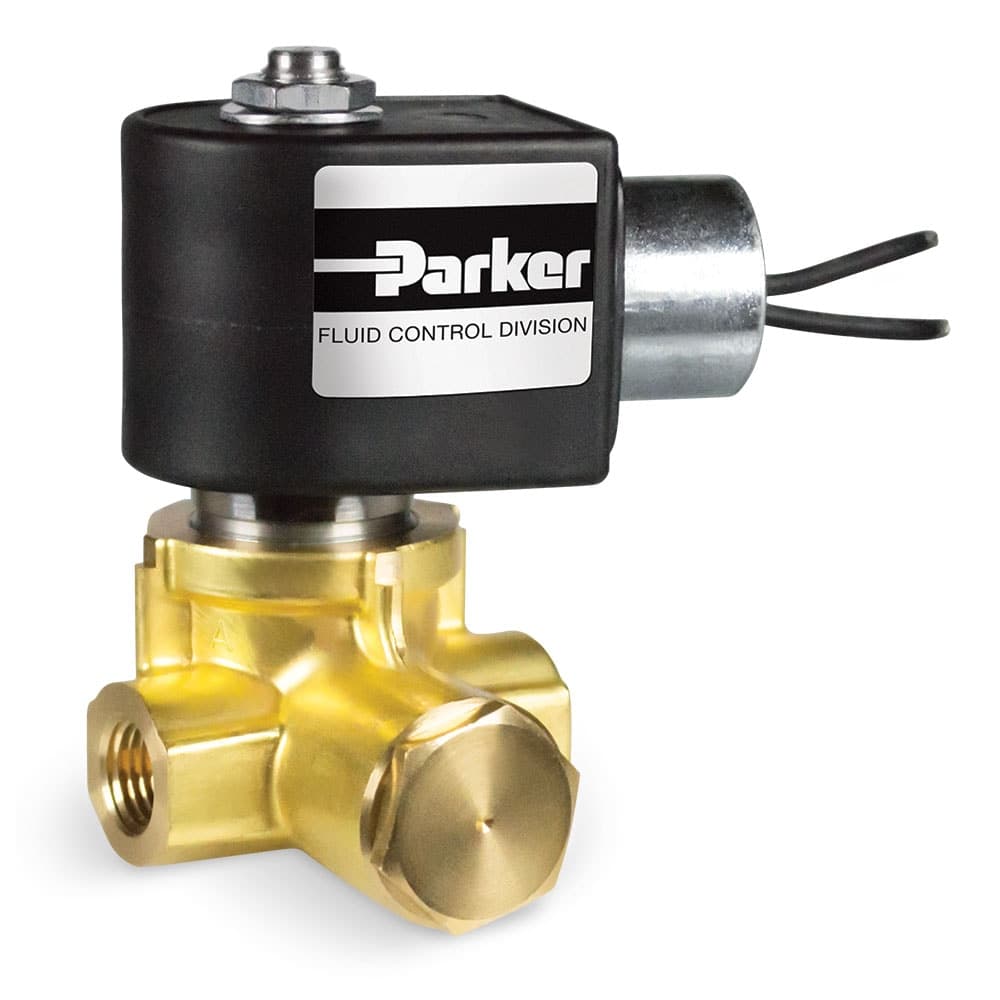

Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves
Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.
2 références disponibles
| Référence | Facteur de débit 1 (Cv) | Tension (V) | Différentiel de pression maxi. (psi) | Dimension orifice 1 (po) | Puissance (W) | Matériau du joint | Type de bobine |
|---|---|---|---|---|---|---|---|
04F20O1106ACFPH05 | 0.17 | 110/50-120/60 | 300 psi (AC) | 3/32 | 11 Watt (AC) | NBR | DIN Form A, Class F |
04F20O1108ACFPH05 | 0.35 | 110/50-120/60 | 130 psi (AC) | 1/8 | 11 Watt (AC) | NBR | DIN Form A, Class F |
Description
Parker's 2-Way Normally Open 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
