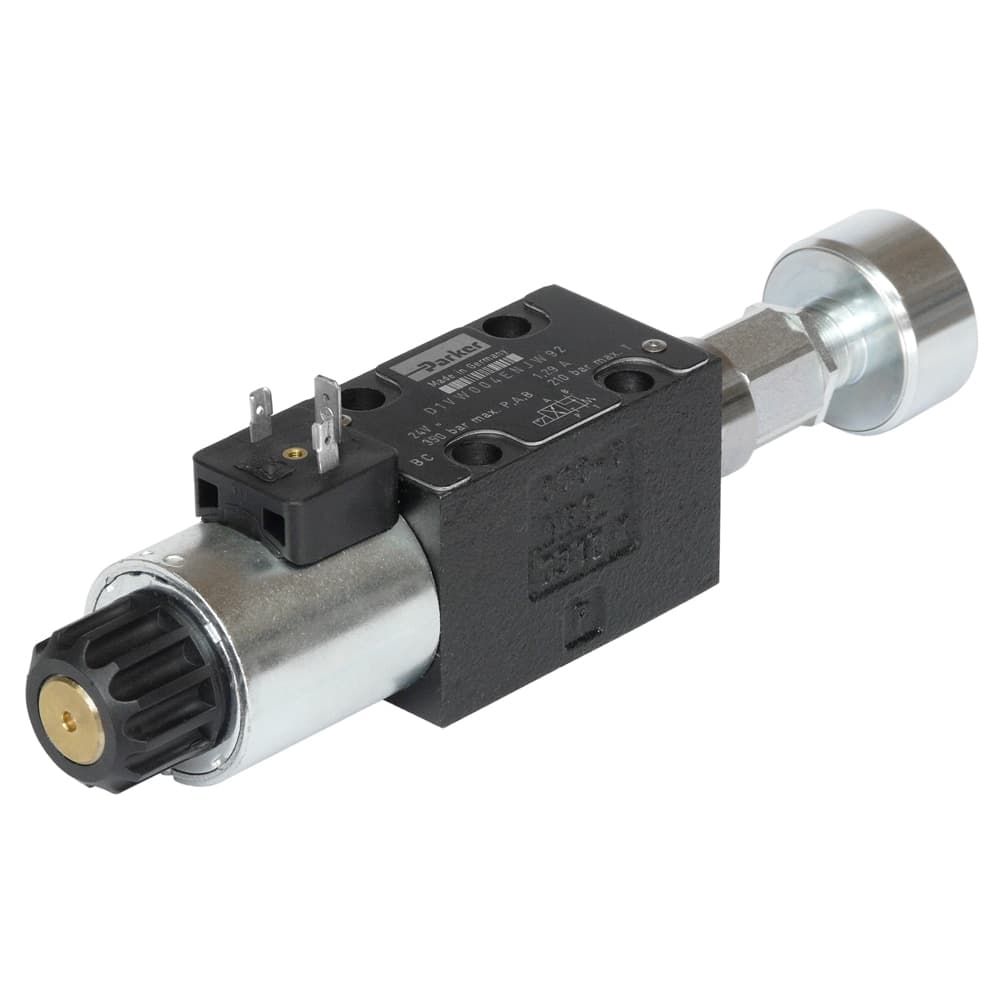

Vanne directionnelle avec contrôle de position inductif – Série D1VW
1/1
Description
Parker’s direct operated directional control valve series D1VW with inductive position control in NG06 (CETOP 03 / NFPA D03) features low energy losses due to optimized flow passages. It offers high functional limits up to 80 l/min and a maximum pressure of 350 bar.
This on/off valve is typically used in safety relevant applications. It complies with the machinery directive 2006/42/EG for use as clamping valve according to EN 201:2010. The start or...
This on/off valve is typically used in safety relevant applications. It complies with the machinery directive 2006/42/EG for use as clamping valve according to EN 201:2010. The start or...
Caractéristiques techniques
| Type de contrôle du positionnement | Start positions |
|---|---|
| Position de la bobine | 3 positions, spring offset in position 0, operated in position a or b |
| Tension d'entrée | 98 V DC |
| Matériau du joint | NBR |
| Code de la bobine | 004 |
| Option d'électrovanne | With manual override |
| Division | Industrial Systems Division Europe |
| Poids | 3.8 kg |
| Pays d'origine | France |
| Référence Fluidexpert | DIS4230 |
| Référence Parker | D1VW004CNUWI6N |
