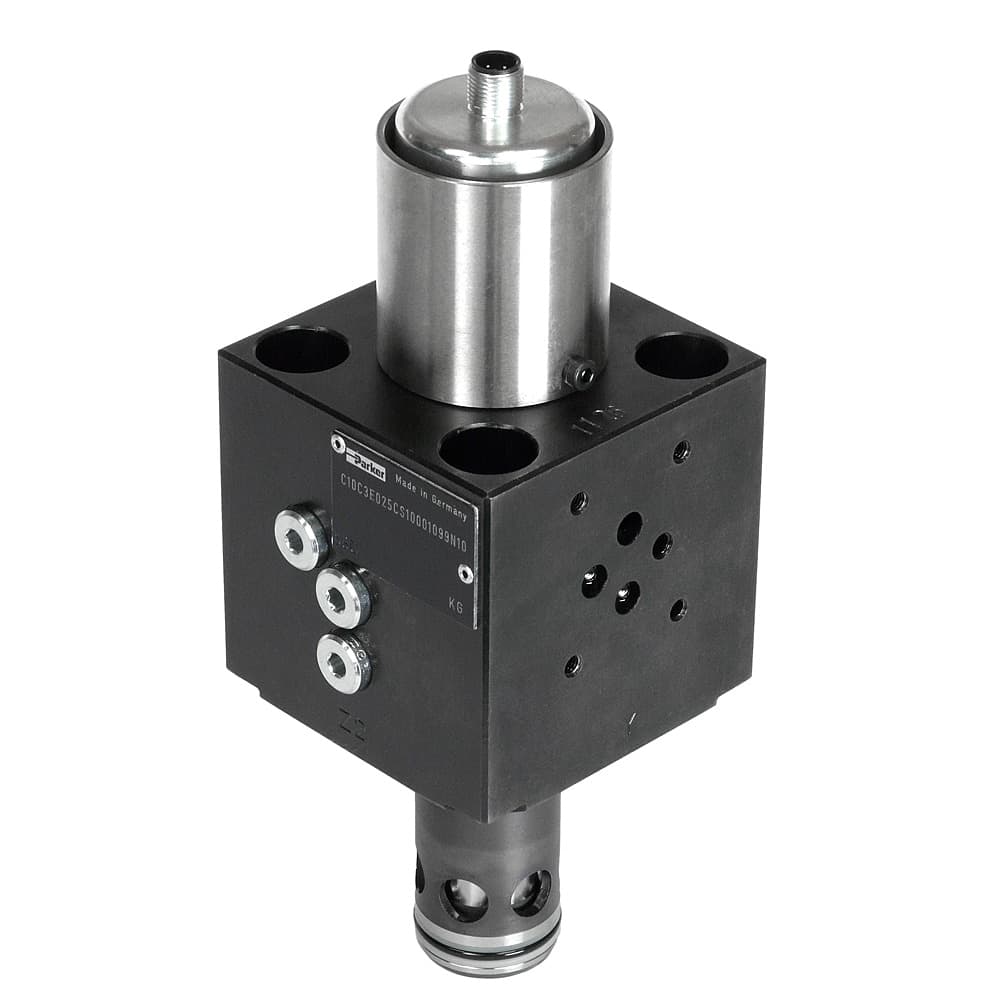

Valve à cartouche à insérer 2 voies Série C10C
1/1
Description
Parker 2/2-way seat valves series C10C*E in slip-in cartridge design are the preferred choice for safety-relevant applications because they enable a reliable shut-off and safe hold of loadings. C10 valves are equipped with an inductive switch to monitor the closed position. The poppet has a 60/40 area ratio (AA = 0.6 AC, AB = 0.4 AC) and is capable for flow in both directions.
The safety overlap of the poppet avoids opening of the valve before the...
The safety overlap of the poppet avoids opening of the valve before the...
Caractéristiques techniques
| Taille de l'orifice 1 | Open |
|---|---|
| Taille de l'orifice 3 | N/A |
| Version | Cover 1 without pilot valve interface |
| Taille de l'orifice 4 | na |
| Matériau - joints | NBR |
| Taille de l'orifice 2 | na |
| Pression d'ouverture minimale (bar) | 1.6 |
| Conception du clapet | Without poppet seal |
| Raccordement d'orifice | NG40 |
| Marquage | Standard |
| Type de commande | Pilotage hydraulique |
| Type de montage | Cartouche à insérer |
| Poids | 7.4 kg |
| Division | Industrial Systems Division Europe |
| Série de produits | Vanne à siège |
| Pays d'origine | France |
| Référence Fluidexpert | DIS4627 |
| Référence Parker | C10C1E040CS99N |
