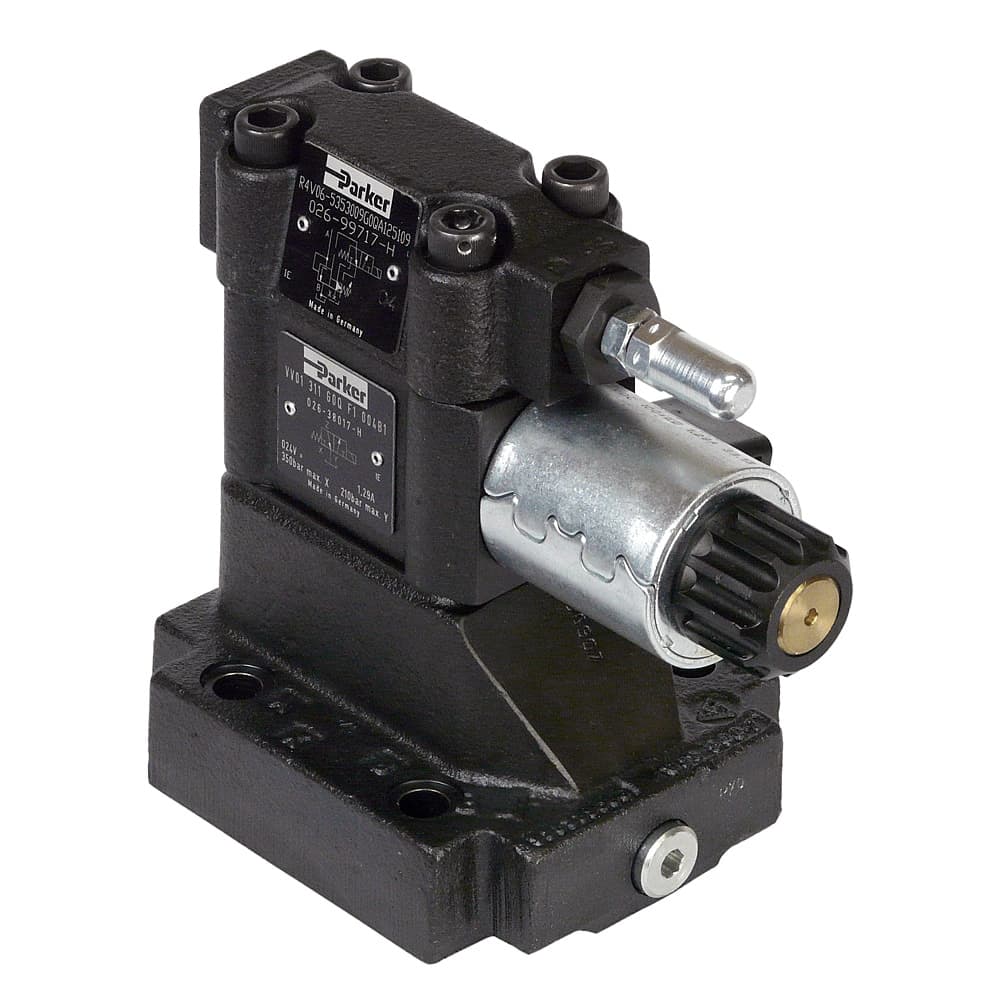

Soupape de sécurité pilotée R4V/R6V
1/1
Description
Well known as excellent pressure relief valves, Parker's series R4V/R6V and R4V/R6V Proportional for subplate mounting work stable across the whole pressure range and thus contribute to a smooth-running operation. Additionally they provide a wide range of options and connections for a versatile use in various applications.
Pilot operated pressure relief valves series R4V (DIN 24340 Form D) and R6V (DIN 24340 Form E) consist of a manually or a proportionally...
Pilot operated pressure relief valves series R4V (DIN 24340 Form D) and R6V (DIN 24340 Form E) consist of a manually or a proportionally...
Caractéristiques techniques
| Option de purge | Drain line internal |
|---|---|
| Tension d'entrée | 24 (VDC) |
| Plage de régulation de pression | 350 bar |
| Raccordement d'orifice | NG10 / CETOP 05 |
| Option de commutation | Vent function: solenoid not activated, unpressurized circulation |
| Type de contrôle de réglage de pression | Hand knob |
| Options supplémentaires | n/a |
| Marquage | Standard |
| Matériau du joint | NBR |
| Type de commande | Manuellement |
| Série de produits | Valve de pression |
| Pression de service maximale | Orifice A, X 350 ; orifice B, Y 30 bar |
| Type de fonctionnement | Pilote |
| Division | Industrial Systems Division Europe |
| Type de montage | Montage sur embase |
| Poids | 4.4 kg |
| Pays d'origine | France |
| Référence Fluidexpert | VDP2853 |
| Référence Parker | 026-36143-H |
