Machine à évaser
1/2
Description
Specifications:
Design: Hand flaring tools for small on-site repair jobs
Operation: Impact flaring pin
37° Flaring: Triple-Lok® connection – ISO 8434-2/SAE J514
Tube material: copper, aluminum, steel and stainless steel tube
Tube diameter: 6 to 38 mm/1/4˝ to 1 1/2˝
Wall thickness: max 15% of tube-O.D., max 10% of tube O.D. for tubes larger 20 mm tube O.D.
Requirements: Rigid vice and hammer
Performance: Overall cycle time 1–3 min
Economic production quantity...
Design: Hand flaring tools for small on-site repair jobs
Operation: Impact flaring pin
37° Flaring: Triple-Lok® connection – ISO 8434-2/SAE J514
Tube material: copper, aluminum, steel and stainless steel tube
Tube diameter: 6 to 38 mm/1/4˝ to 1 1/2˝
Wall thickness: max 15% of tube-O.D., max 10% of tube O.D. for tubes larger 20 mm tube O.D.
Requirements: Rigid vice and hammer
Performance: Overall cycle time 1–3 min
Economic production quantity...
Caractéristiques techniques
| Diamètre extérieur du tube | 12-16 mm / 1/2"-5/8" |
|---|---|

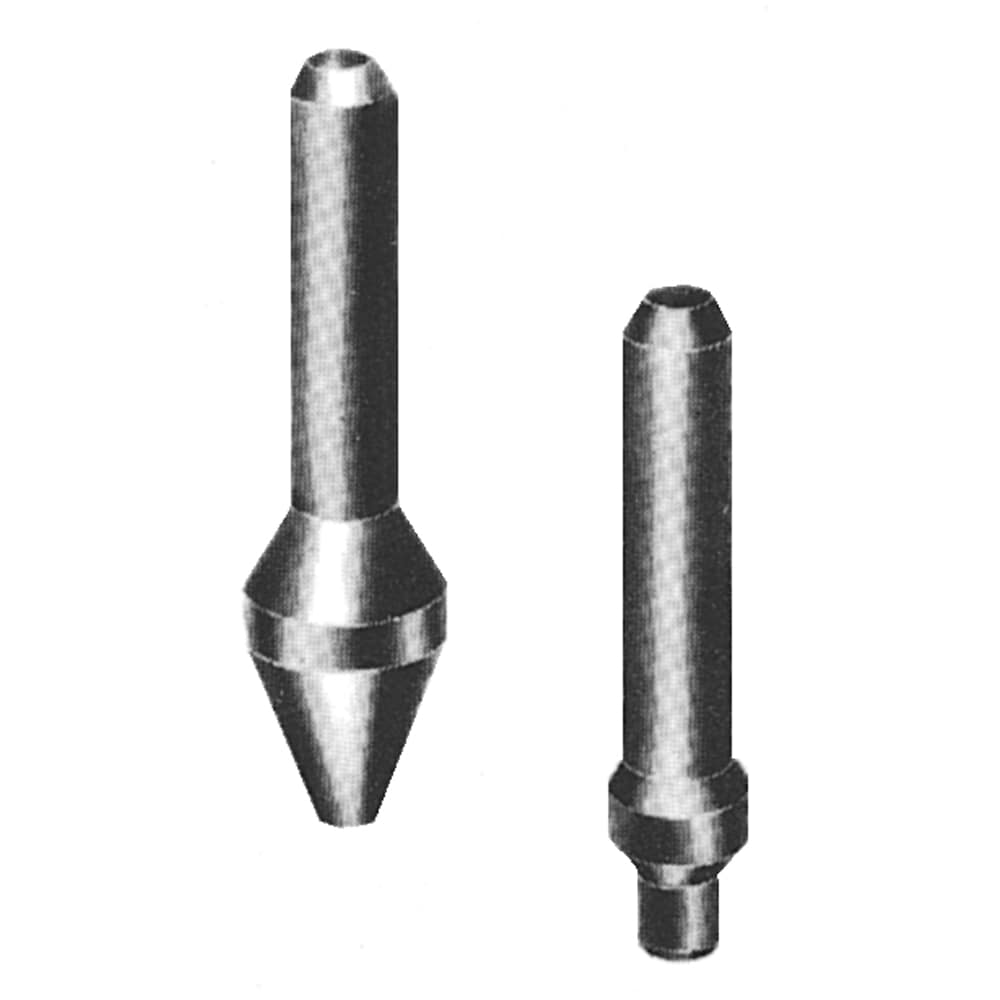

| Type de produit | Flaring pin |
| Poids | 0.38 kg |
| Pays d'origine | Germany |
| Référence Fluidexpert | OUH0122 |
| Référence Parker | P17414 |
