Description

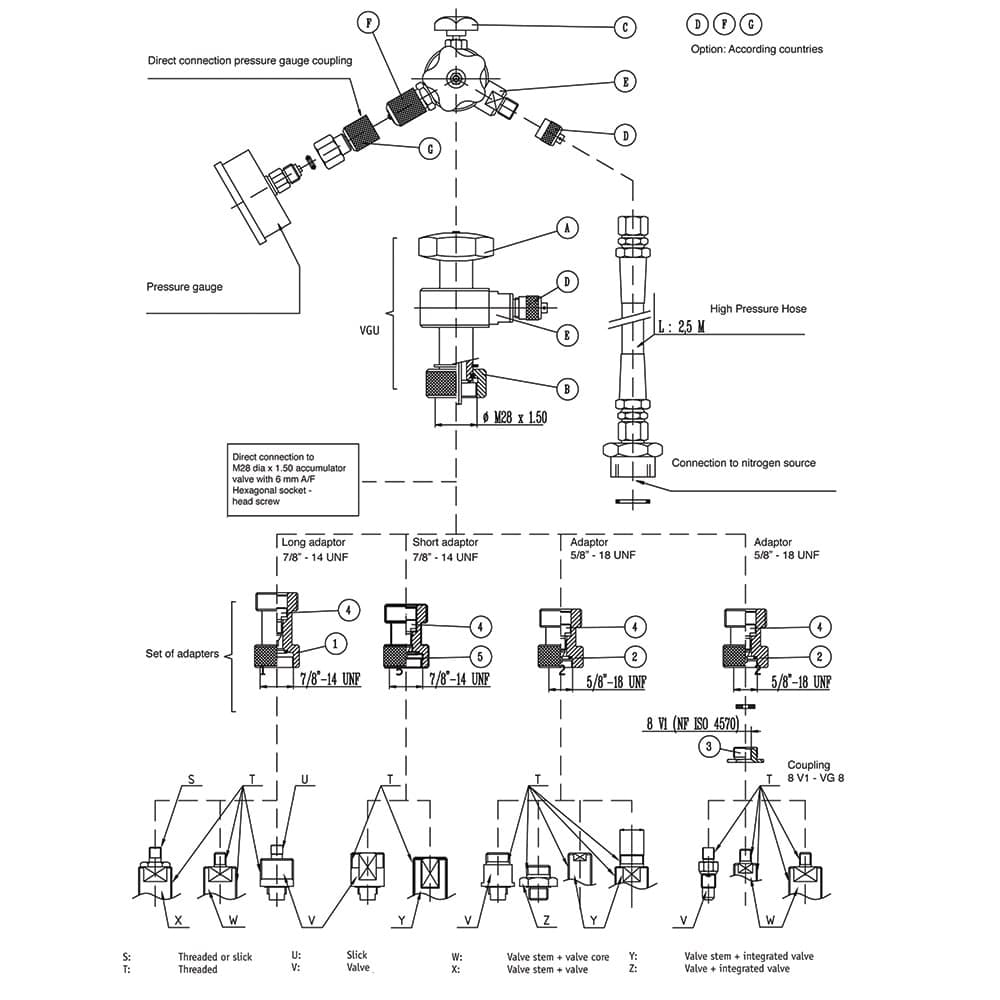

The charging set VGU is an indispensable instrument for the verification, pressurization and nitrogen bleeding of most of the hydraulic

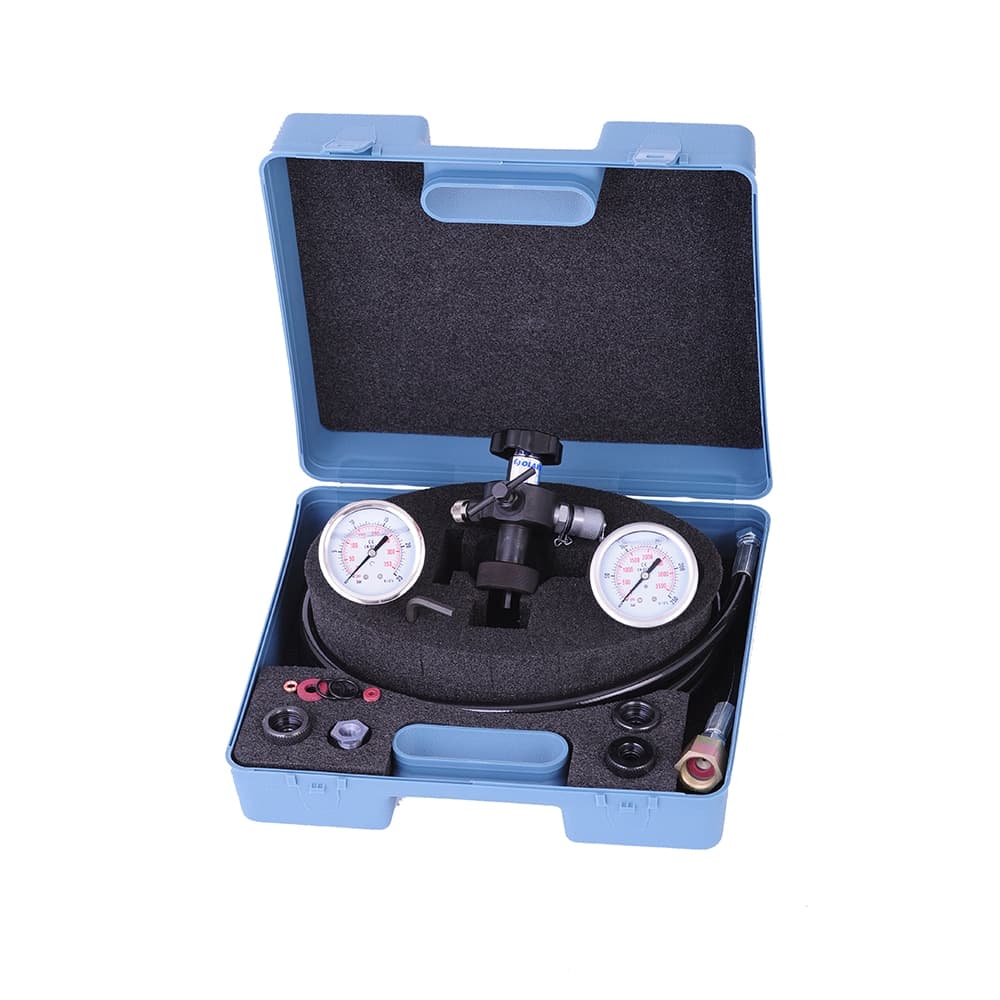

accumulators available on the market. The standard set is delivered in a storage case containing the following:
• VGU universal tester and pressurizer (end M28 x 1.50).
• Pressure gauge kit from 0 to 25 bar.
• Pressure gauge kit from 0 to 250 bar.
• Connection adapters for inflation valves (7/8’’ – 5/8’’ – 8V1 - M28 x...
accumulators available on the market. The standard set is delivered in a storage case containing the following:
• VGU universal tester and pressurizer (end M28 x 1.50).
• Pressure gauge kit from 0 to 25 bar.
• Pressure gauge kit from 0 to 250 bar.
• Connection adapters for inflation valves (7/8’’ – 5/8’’ – 8V1 - M28 x...
Caractéristiques techniques
| Manomètre | 25/250 |
|---|---|
| Type de raccordement | 7:7/8"-14 UNF(short) 7/8"-14 UNF(length) 5/8"-18 UNF 8V1 M28X1.5 |
| Type | VGU/F |
| Type de flexible | TS2:connection for French and China bottle |
| Division | Hydraulic Division China |
| Poids | 3 kg |
| Pays d'origine | France |
| Référence Fluidexpert | ACU0172 |
| Référence Parker Olaer | 20214122723 |
