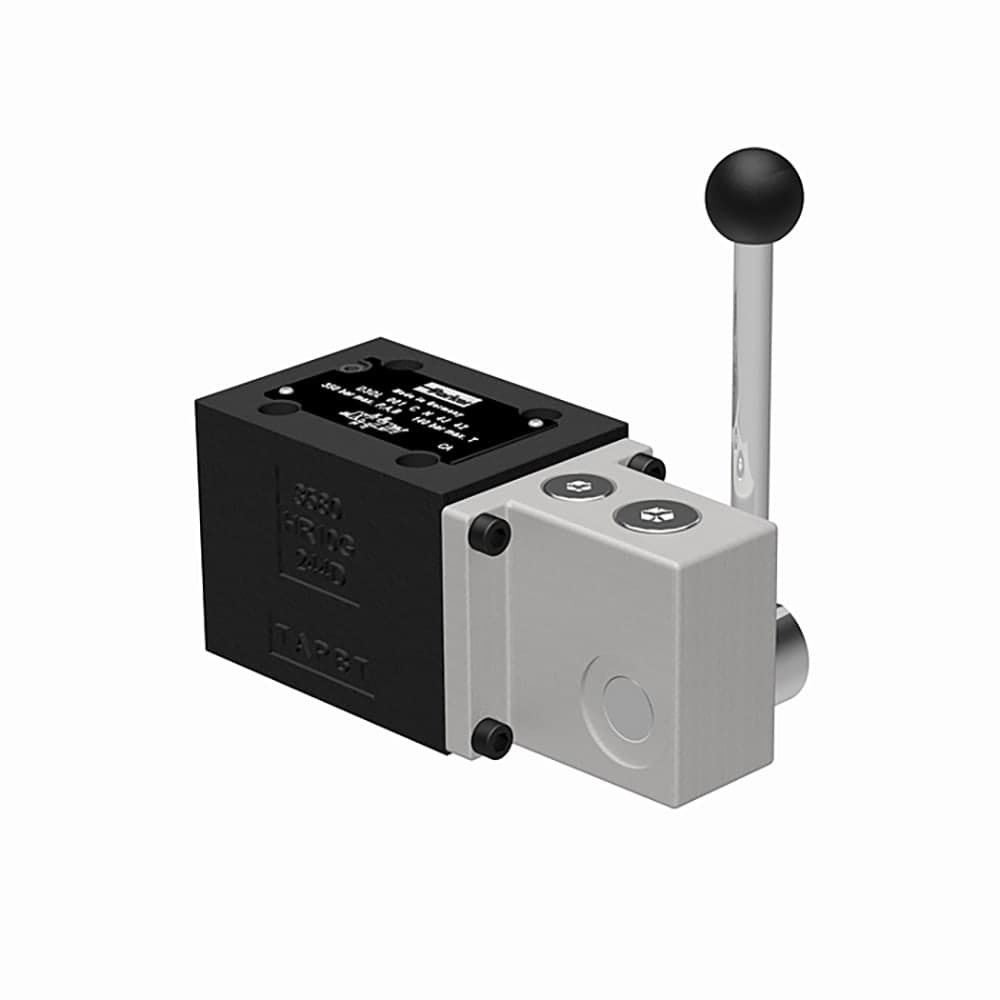

Distributeur action directe série D1VL / D3DL
1/2
Description
The direct operated directional control valves series D1VL and D3DL with hand lever provide high functional limits (D1VL: up to 80 l/min, D3DL: up to 130 l/min) for safe operation also at high flow rates. Additonally they fit all hydraulic systems due to a large number of spool options.
Markets:
• Industrial
Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics
• Wide range of spool options - fits all hydraulic...
Markets:
• Industrial
Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics
• Wide range of spool options - fits all hydraulic...
Caractéristiques techniques
| Option de commutation | Center of rotation below spool axis |
|---|---|
| Actionnement | Hand lever side B |
| Matériau du joint | NBR |
| Position de la bobine | 2 positions, detent, operated in position a or b, no center, no offset position |
| Code de la bobine | 020 |
| Raccordement d'orifice | NG10 / CETOP 05 |
| Division | Industrial Systems Division Europe |
| Pays d'origine | France |
| Référence Fluidexpert | DIS5090 |
| Référence Parker | D3DL020DN4J |
Fichiers
| Type | Langue | Format |
|---|---|---|
| Fiche technique | Français | |
| Fiche technique | Français | |
| Fiche technique | Français | |
| Fiche technique | Français | |
| Fiche technique | Français | |
| Fiche technique | Français |
