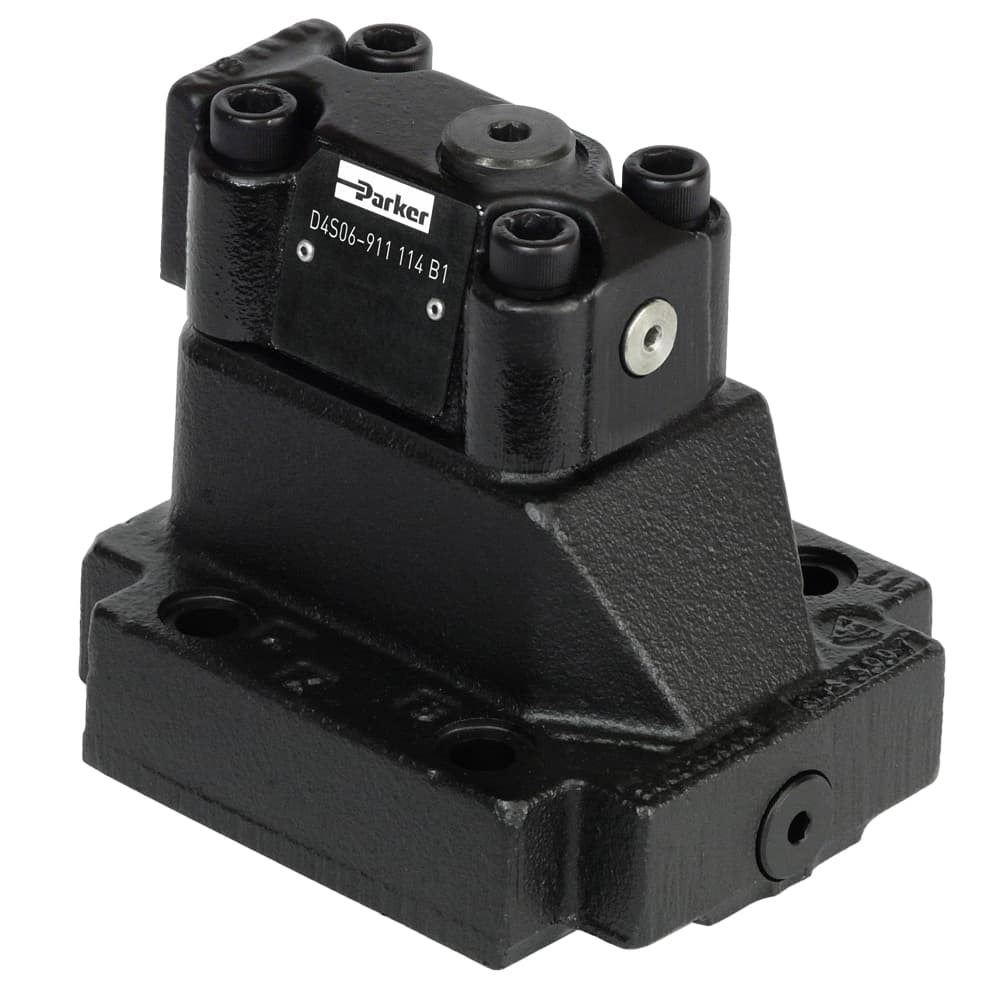

Clapet à siège 2/2 voies Série D4S
1/1
Description
Parker's highly versatile 2/2-way seat valves series D4S06 for subplate mounting are designed for directional control functions allows to design individual hydraulic solutions for nominal flow up to 360 l/min.
Markets:
• Industrial
Features/Benefits:
• Proven, robust design - ensures reliable operation
• Individual configurability, various function options - useable for numerous applications
• Good price-performance ratio - fast return of investment
• Short...
Markets:
• Industrial
Features/Benefits:
• Proven, robust design - ensures reliable operation
• Individual configurability, various function options - useable for numerous applications
• Good price-performance ratio - fast return of investment
• Short...
Caractéristiques techniques
| Raccordement d'orifice | NG25 / ISO 6264 |
|---|---|
| Options | N/A |
| Matériau du joint | NBR |
| Gaine | Pilot line cap: Standard, pilot oil = pilot drain, X open, Y closed, Z orifice 1.2, X-Y open, Y1 closed |
| Pression d'ouverture minimale | A-B 3.5 bar, B-A 6.0 bar |
| Type de manchon | AA=0.60 AC, AB=0.40 AC |
| Tension d'entrée | na |
| Emplacements de la vidange/l'entrée pilote | Pilot line body: External from X (A-X closed / B-Y open) |
| Type de bobine | Poppet with closed bottom, 45° chamfer |
| Option de commutation | N/A |
| Division | Industrial Systems Division Europe |
| Type de montage | Montage sur embase |
| Série de produits | Clapet antiretour |
| Poids | 4.5 kg |
| Poids | 4.4 kg |
| Pays d'origine | France |
| Référence Fluidexpert | DIS1775 |
| Référence Parker Denison | 026-23757-0 |
